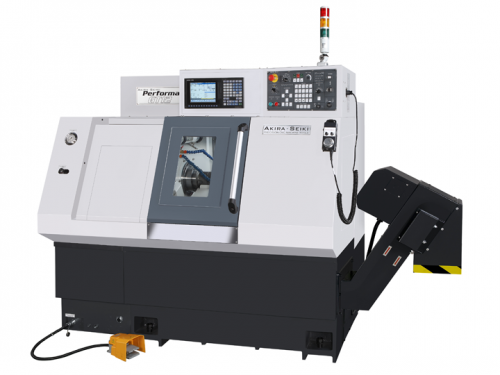

GT-12 |
|
|
|
|
|
|
最大床台旋徑 |
400mm |
|
|
|
|
|
|
最大切銷長度 |
200mm |
|
|
|
|
|
|
夾頭尺寸 |
CR42 / 5C |
|
|
|
|
|
|
轉速 |
6000rpm |
|
|
|
|
|
|
馬力 |
17HP |
|
|
|
|
|
|
X軸行程 |
400mm |
|
|
|
|
|
|
Z軸行程 |
220mm |
|
|
|
|
|
|
快速進給 |
36M |
|
|
|
|
|
|
刀塔 |
8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

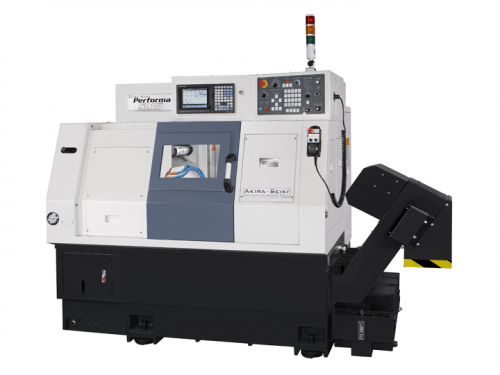

SL15 |

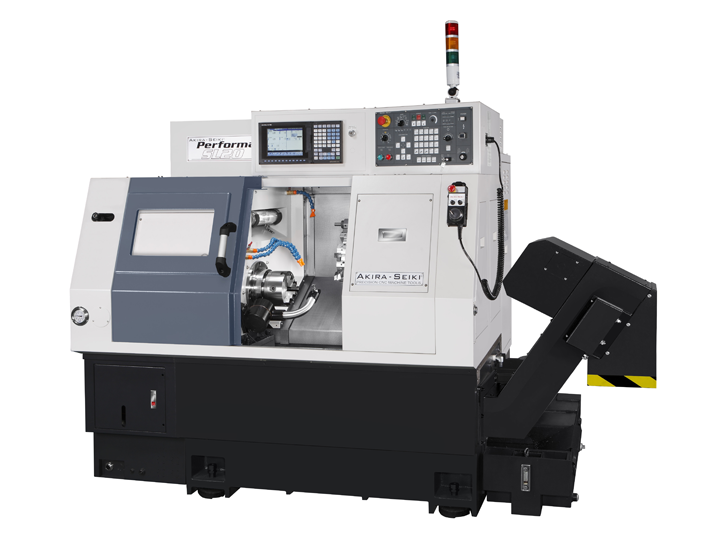

SL20 |

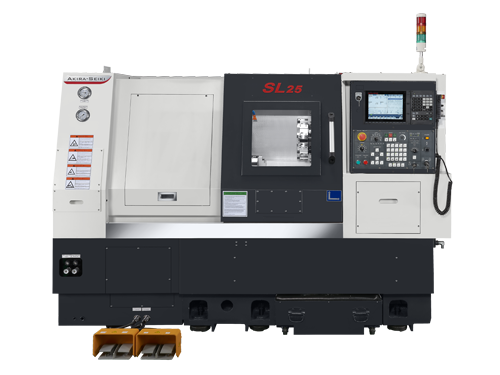

SL25 |
|
|
|
|
最大床台旋徑 |
450mm |
450mm |
530mm |
|
|
|
|
最大切銷直徑 |
290mm |
290mm |
350mm |
|
|
|
|
最大切銷長度 |
200mm |
330mm |
400mm |
|
|
|
|
夾頭尺寸 |
CR42 / 5C |
6" |
8" |
|
|
|
|
轉速 |
6000rpm |
6000rpm |
5000rpm |
|
|
|
|
馬力 |
24HP |
24HP |
17HP |
|
|
|
|
X軸行程 |
150+15mm |
150+15mm |
195+15mm |
|
|
|
|
Z軸行程 |
220mm |
350mm |
435mm |
|
|
|
|
快速進給 |
36M |
36M |
36M |
|
|
|
|
刀塔 |
10 |
10 |
12 |
|
|
|
|
|
|
|
|
|
|
|
|
|

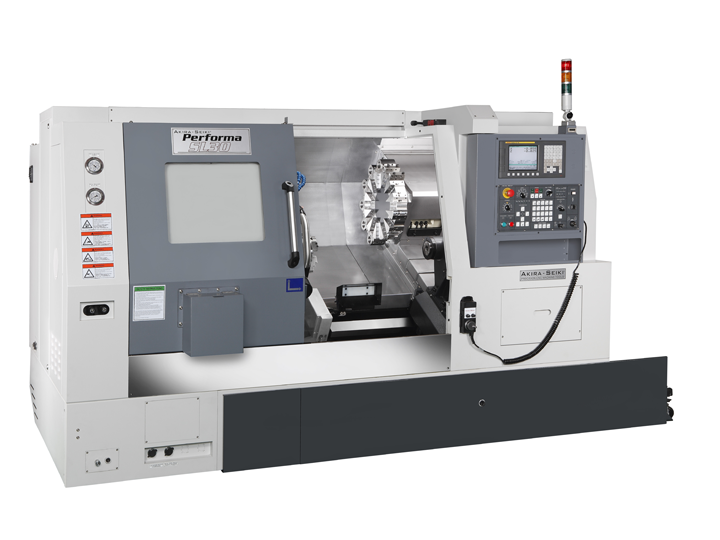

SL30 |
SL30L |
SL35 |
SL35L |

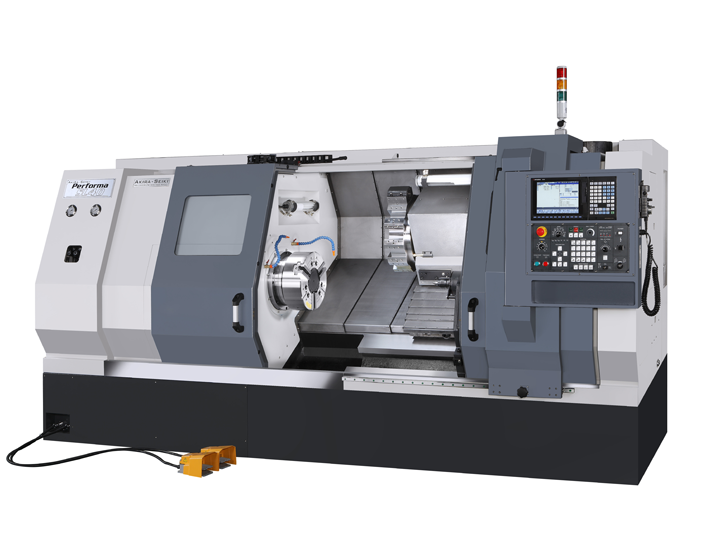

SL40 |
SL40L |
|
最大床台旋徑 |
600mm |
; |
650mm |
; |
750mm |
; |
|
最大切銷直徑 |
400mm |
; |
450mm |
; |
550mm |
; |
|
最大切銷長度 |
600mm |
1000mm |
600mm |
1000 |
950mm |
1500 |
|
夾頭尺寸 |
8"(標準) 10"(選配) |
|
10"(標準) 12"(選配) |
|
15"(標準) 18"(選配) |
|
|
轉速 |
4500rpm |
; |
3500rpm |
; |
2500rpm |
; |
|
馬力 |
24HP |
; |
30HP |
; |
60HP |
; |
|
X軸行程 |
220+20mm |
; |
235+20mm |
; |
285+25mm |
; |
|
Z軸行程 |
610mm |
1010mm |
630mm |
1025mm |
975mm |
1520mm |
|
快速進給 |
36M |
; |
36MM |
; |
30/36 |
; |
|
刀塔 |
12 |
; |
; |
; |
; |
; |
